1.5% FS Accuracy, Brass Wetted Parts, Dual PSI/Bar x100 kPa Scales

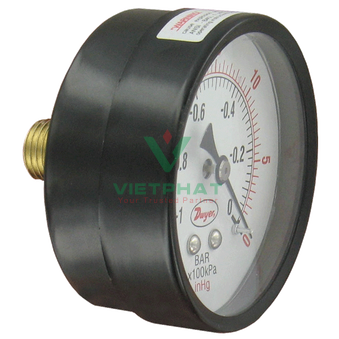

2.5" Utility Pressure Gage is economical and have applications in air regulators and pneumatic systems. A wide variety of ranges are available in this economical gage in either bottom or back connection configurations.
Features
-
Dual scale provides reading in easily recognizable units
-
Good accuracy gage for value-sensitive applications
-
Compact size provides for mounting with dimensional limitations
-
Higher accuracy gage for value-sensitive applications requiring more precise measurement
-
Back or bottom mounting and compact size provides for mounting with dimensional limitations
Product Applications
-
Air regulators
-
Pneumatic systems
Specifications
-
Service: Compatible gases & liquids.
-
Wetted Materials: Brass connector, phosphor bronze tube.
-
Housing: Black painted steel.
-
Lens: Polycarbonate.
-
Accuracy: ±1.5% FS.
-
Pressure Limit: FS value.
-
Temperature Limits: -4 to 140°F (-20 to 60°C).
-
Size: 2.5" (63 mm).
-
Process Connections: 1/4" male NPT.
-
Weight: 5.1 oz (145 g) bottom, 5.5 oz (155 g) back.
