1.5% FS Accuracy, Brass Wetted Parts, Dual PSI/Bar x100 kPa Scales
2.5" Industrial Pressure Gage employs an easy-open breather plug on top. Plug easily pops open and does not need to be entirely removed.
Features
-
Stainless steel housing and wetted parts to resist ambient corrosion for longer service life in harsh environments
-
Higher accuracy gage for value-sensitive applications requiring more precise measurement and where vibration is a concern
-

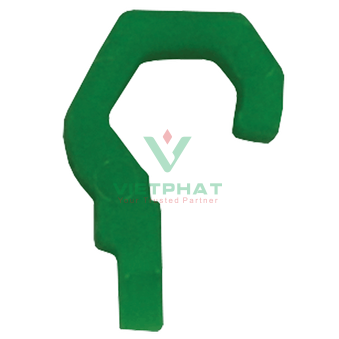

Optional sliding pointer clearly mark to make visible critical ranges and high and low points
-
Liquid fillable gage with easy open breather plug provides smoother damped movement of pointer
-

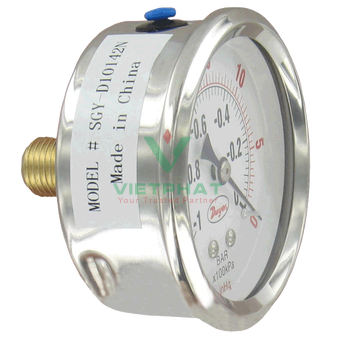

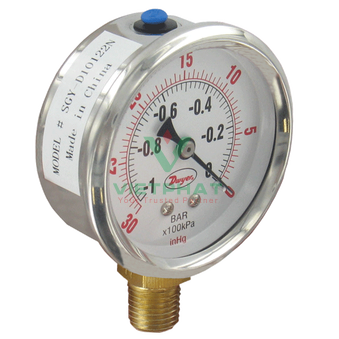

Back or bottom mounting and compact size provides for mounting with dimensional limitations
Product Applications
-
Vacuums in pneumatic conveying lines
-
Positive pressure in compressed air headers
-
Corrosive ambient environments
Specifications
-
Service: Compatible gases and liquids.
-
Wetted Materials: Brass connection, bronze tube.
-
Housing: 304 SS.
-
Lens: Polycarbonate.
-
Accuracy: ±1.5% FS.
-
Pressure Limit: FS range.
-
Temperature Limits: -4 to 140°F (-20 to 60°C).
-
Size: 2.5" (63 mm).
-
Process Connections: 1/4" male NPT.
-
Weight: 4.9 oz (139 g) bottom, 5.8 oz (164 g) back. Add 2.8 oz (78 g) for fill.
