Brass or 316 SS Wetted Parts
Stainless Steel Low Pressure Gage has a zero adjustment screw on the dial. Applications include pneumatic, liquid level, and draft measurement.
Features
-
Stainless steel housing and wetted parts resist ambient corrosion for longer service life in harsh environments
-
High accuracy gage for applications requiring more precise measurement
-
Models that support vacuum to higher pressure ranges provide a selection to meet specific applications
-
Specified with high ambient and process temperature ratings mean more robust uses and longer service-life
-
Field adjustable zeroing screw simplifies installation and calibration
Product Applications
-
Pneumatic
-
Draft Measurement
-
Filter Monitoring
-
Liquid Level
Specifications
-
Service: Compatible gases and liquids.
-

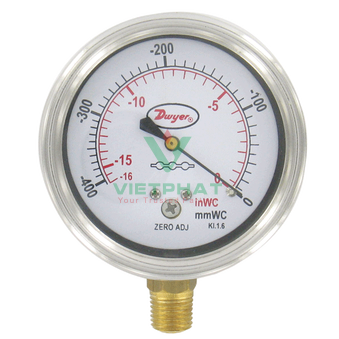

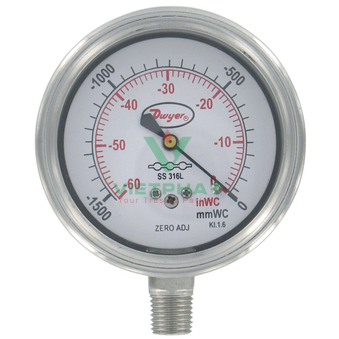

Wetted Materials: SGX: Brass; SGF: 316/316L SS.
-
Housing: 304 SS.
-
Lens: Glass.
-
Accuracy: ±1.6% FS on positive pressure ranges 15 in w.c. & greater; ±2.5% FS on all other ranges.
-
Pressure Limits: Full scale value.
-
Temperature Limits: Ambient: -13 to 149°F (-25 to 65°C); Process: 212°F (100°C) max.
-
Size: 2.5" (63 mm)
-
Process Connection: 1/4" male NPT.
-
Enclosure Rating: NEMA 3 (IP54).
-
Weight: 4.6 oz (0.13 kg).
