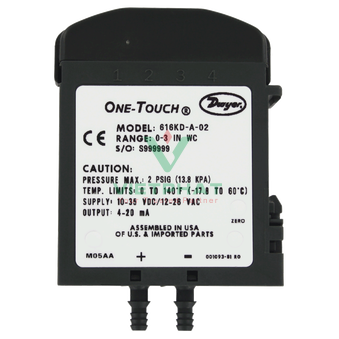

One-Touch® Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy
Differential Pressure Transmitter
Features
-
Simple calibration push-button sets back zero and span, saving time installing and over the service life
-
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
-
Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
-
Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing
-
Optional plenum rated units meeting UL Standard 2043 are available
Product Applications
-
Air handlers
-
Duct pressure
-
Variable air volume
-
Filter monitoring
Specifications
-
Service: Air and non-combustible, compatible gases.
-
Wetted Materials: Consult factory.
-
Accuracy: 616KD-A: ±0.25% FS; 616KD-B: ±1% FS, 616KD: ±2% FS.
-
Stability: ±1% FS/year.
-
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
-
Compensated Temperature Range: 20 to 122°F (-6.67 to 50°C).
-
Pressure Limits: 2 psig (ranges 5" w.c. or lower); 5 psig (ranges 10 to 40" w.c.).
-
Thermal Effect: 616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD: ±0.06% FS/°F, includes zero and span.
-
Power Requirements: 4-20 mA output: 10 - 35 VDC (2 wire) or 12-26 VAC (4 wire); 5V output: 10 - 35 VDC (3 wire) or 12-26 VAC (4 wire); 10V output: 13 - 35 VDC (3 wire) or 12-26 VAC (4 wire) for 616KD A and B. 16 to 36 VDC (2 or 3 wire): 20 to 28 VAC (3 wire) for 616KD.
-
Output Signal: 4 to 20 mA or option with field selectable 0 to 10, 0 to 5, 2 to 10, 1 to 5 V.
-
Zero and Span Adjustments: Push button.
-
Loop Resistance: 4 to 20 mA output (DC): 0 to 1250 Ω max. Rmax = 50(VpsDC -10) Ω; 4 to 20 mA output (AC): 0 to 1200 Ω max. Rmax = 50(1.4 VpsAC -12) Ω; Voltage output: 5K Ω minimum.
-
Current Consumption: 24 mA max for 616KD A and B. 21 mA max for 616KD.
-
Electrical Connections: Screw-type terminal block.
-
Process Connections: Barbed, dual size to fit 1/8" & 3/16" (3 mm and 5 mm) ID rubber or vinyl tubing.
-
Enclosure Rating: NEMA 1 (IP20).
-
Mounting Orientation: Vertical with pressure connections pointing down.
-
Weight: 1.8 oz (51 g).
-
Agency Approval: CE, optional plenum rated units meet UL Standard 2043.
