Liquid & Gas Pressure Measurement, ±0.5% FS Accuracy

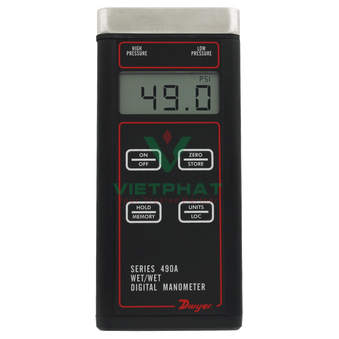

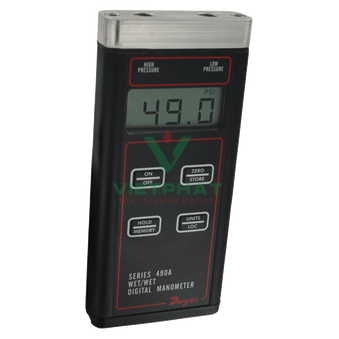

Hydronic Differential Pressure Manometer is a versatile, handheld, battery operated manometer.
Features
-
Seven user-selectable English and metric units
-
Stores up to 40 readings for later recall
-
Backlight for use in dim areas
-
Digital dampening for low pressure - high resolution logging accuracy
-
Automatic resolution adjustment for finer control
Product Applications
-
Chiller to coils for freeze protection
-
Hydronic valve balancing
-
Measure pressure drop across pumps
-
Refrigerant pressure testing
Specifications
-
Service: Compatible gases & liquids.
-
Wetted Materials: Without valve: 316L SS, -3V option: 316LSS, Buna-N, silicone, grease, PTFE, brass 360, copper, reinforced acetal copolymer.
-
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
-
Pressure Hysteresis: ±0.1% FS.
-
Pressure Limits: See chart on catalog page.
-
Electronic Temperature Limits: 32 to 140°F (0 to 60°C).
-
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
-
Display: 0.42" (10.6 mm) 4 digit LCD.
-
Resolution: See chart on catalog page.
-

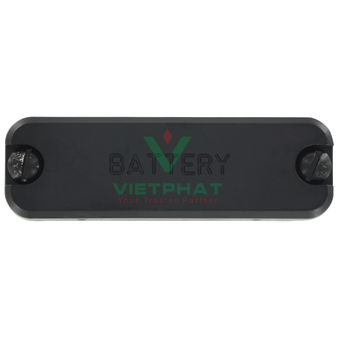

Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable.
-
Process Connections: Two 1/8" (3.18 mm) female NPT.
-
Weight: 14.1 oz (400 g).
-
Agency Approvals: CE.
