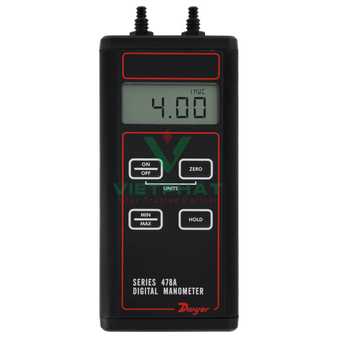

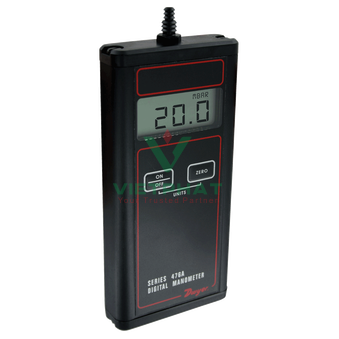

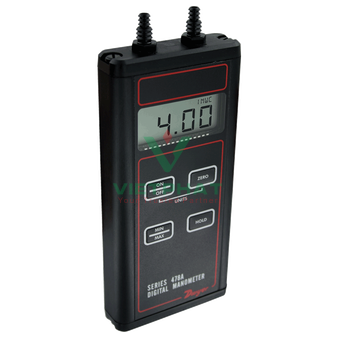

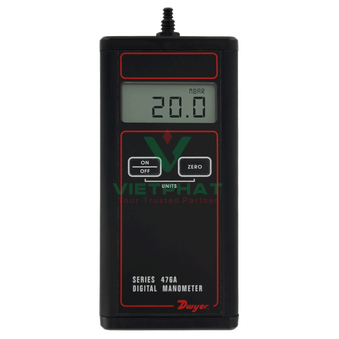

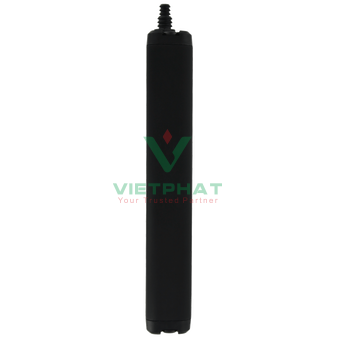

Single & Dual Pressure Measurement, Electronic Zeroing, ±1.5% Accuracy
Digital Manometer can be used to measure low pressure. Constructed of extruded aluminum case.
Features
-
One button auto-zero function
-
Auto power off function to conserve battery life
-

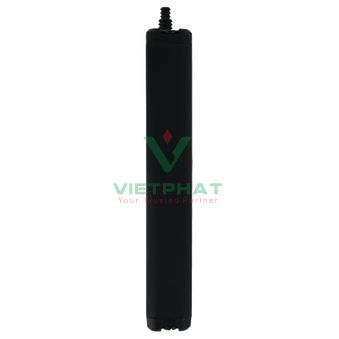

Rugged extruded aluminum housing
-
Instant selection of up to nine English/metric units
-
±0.5% FS accuracy
Product Applications
Specifications
-
Service: Air and compatible gases.
-
Wetted Materials: Consult factory.
-
Accuracy: ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability.
-
Pressure Hysteresis: ±0.1% of FS.
-
Pressure Limits: 5 psig (.34 bar).
-
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
-
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
-
Thermal Effect: 0.05% F.S./°F.
-
Display: 4 digit LCD (.425"H x .234"W digits).
-

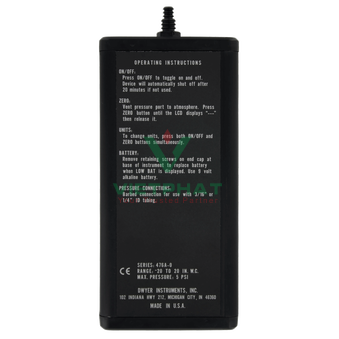

Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable.
-
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
-
Weight: 10.8 oz (306 g).
-
Agency Approvals: CE.
