Model
|
AC coil
|

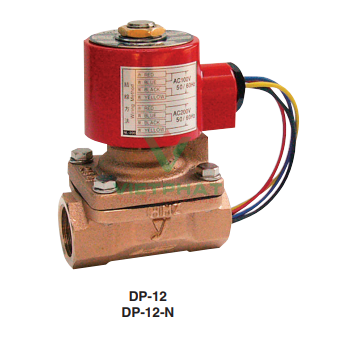

DP-12*12-N
|

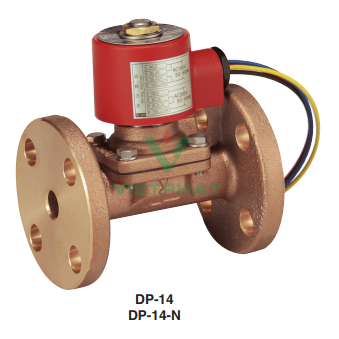

DP-14*14-N
|
DP-12C
|
DP-14C
|
|
DC coil
|
DP-12D
|
DP-14D
|
DP-12CD
|
DP-14CD
|
|
|
Application
|
Air, Cold and hot water, Oil (20 cSt or less)
|
||||
|
Working pressure
|
0-1.0 MPa (unusable under vacuum)
|
||||
|
Min. differential pressure
|
0 MPa (0.1 MPa or more is required for vertical installation)
|
||||
|
Valve seat leakage
|
No leakage at the pressure gauge
|
||||
|
Max. temperature
|
60°C
|
||||
|
Operation
|
|
Normally closed
|

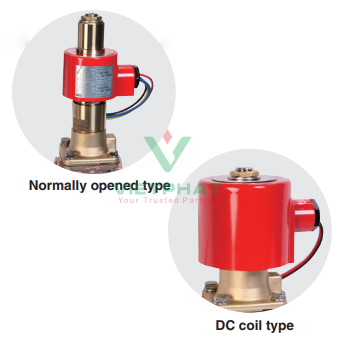

Normally opened
|
||
|
Material
|
Body
|
Cast bronze *
|
|||
|
Valve
|
NBR (diaphragm)
|
||||
|
Connection
|
JIS Rc screwed
|
JIS 10K FF flanged
|
JIS Rc screwed
|
JIS 10K FF flanged
|
|
