Selectable Engineering Units, Rubber Boot

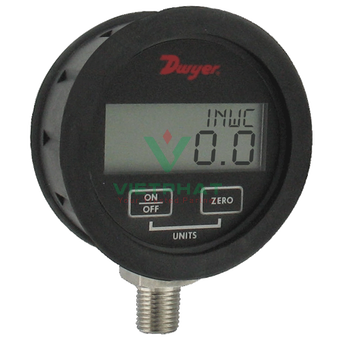

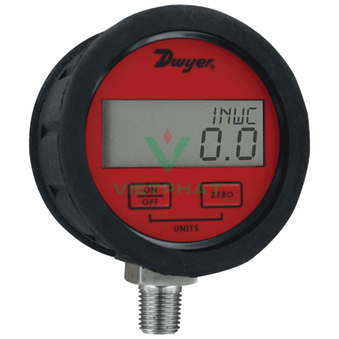

0.5% Digital Pressure Gage is easy to use unit at prices comparable to mechanical gages. This product comes with a protective rubber boot to protect against short drops and rough handling.
Features
-
Push-button zero reduce installation and service time
-
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
-
Selectable unit button provides reading in easily recognizable units
Product Applications
Specifications
-
Service:
-
Wetted Materials:
-
Housing Materials: ABS plastic.
-
Accuracy: ±0.5% F.S. (includes linearity, hysteresis, repeatability).
-
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
-
Temperature Limits: 30 to 120°F (-1 to 49°C).
-
Thermal Effect: 0.05% FS/°F.
-
Size: 2.62" O.D. x 1.52" deep.
-
Process Connections: 1/4" male NPT.
-
Display: 4-digit LCD (.425" H x .234" W digits).
-
Power Requirements: 9 V alkaline battery, included, user replaceable.
-
Auto Shut-off: 20 minute auto shut-off.
-
Weight: 5.6 oz (160 g).
