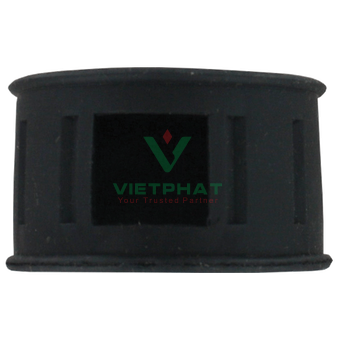

Economic Gage With Selectable Engineering Units, Rubber Boot

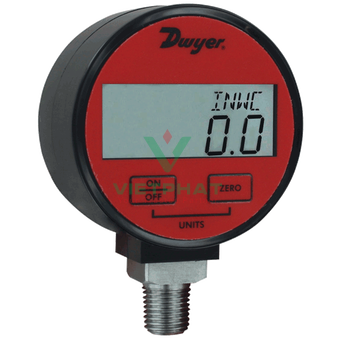

Digital Pressure Gage with 1% Accuracy is economical and monitors air and compatible gases. Applications include process applications, process start-up, and OEM applications.
Features
-
Push-button zero reduce installation and service time
-
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
-
Selectable unit button provides reading in easily recognizable units
-
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
Product Applications
-
Process applications
-
Process start-up
-
OEM applications
Specifications
-
Service: DPGA: air and compatible gases; DPGW: liquids and compatible gases.
-
Wetted Materials: DPGA: 316L SS, silicone sensor; DPGW: 316L SS.
-
Housing Materials: ABS plastic.
-
Accuracy: ±1.0% F.S. (Includes linearity, hysteresis, repeatability.)
-
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
-
Temperature Limits: 30 to 120°F (-1 to 49°C).
-
Thermal Effect: 0.05% FS/°F.
-
Size: 2.62" OD x 1.52" deep.
-
Process Connection: 1/4" male NPT.
-
Display: 4-digit LCD (.425" H x .234" W digits).
-
Power Requirements: 9 V alkaline battery, included, user replaceable.
-
Auto Shut-Off: 20 minute auto shut-off.
-
Weight: 5.6 oz (160 g).
