Series ADPS/EDPS

  • Thương hiệu:
  • Sản xuất tại:
    Mỹ
  • Mã HH:
  • Đơn vị tính:
    Cái
Tổng quan về sản phẩm

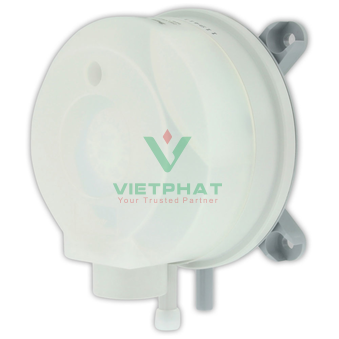

With Dual Scale Field Adjustable Set Point Knob
HVAC Differential Pressure Switch which applies to controlling air and fire-protection dampers and monitoring air filters and ventilators.

Features
  • Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
  • Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
  • Relay contact allows simple integration with DDC or building systems
Product Applications
  • Monitoring air filters and ventilators.
  • Monitoring industrial cooling-air circuits.
  • Overheating protection for fan heaters.
  • Monitoring flows in ventilation ducts.
  • Controlling air and fire-protection dampers.
  • Frost protection for heat exchanges.
Specifications
  • Service: Air and non-combustible, compatible gases.
  • Wetted Materials:
    • ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene;
    • EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
  • Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C).
  • Storage: -40 to 185°F (-40 to 85°C).
  • Pressure Limits: Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
  • Switch Type: Single-pole double-throw (SPDT).
  • Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min.
  • Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection.
  • Process Connections: 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
  • Enclosure Rating: NEMA 3 (IP54).
  • Mounting Orientation: Vertically, with pressure connections pointing downwards.
  • Mechanical Working Life: Over 106 switching operations.
  • Weight: 4.4 oz (125 g).
  • Agency Approvals: CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only).
Chọn sản phẩm
Chọn Giá Tên HH Mã HH
Liên hệ
Công tắc áp suất ADPS-03-1-N
ADPS-03-1-N
Liên hệ
Công tắc áp suất ADPS-03-2-N
ADPS-03-2-N
Liên hệ
Công tắc áp suất ADPS-03-2-N-C
ADPS-03-2-N-C
Liên hệ
Công tắc áp suất ADPS-04-1-N
ADPS-04-1-N
Liên hệ
Công tắc áp suất ADPS-04-2-N
ADPS-04-2-N
Liên hệ
Công tắc áp suất ADPS-04-2-N-C
ADPS-04-2-N-C
Liên hệ
Công tắc áp suất ADPS-05-1-N
ADPS-05-1-N
Liên hệ
Công tắc áp suất ADPS-05-2-N
ADPS-05-2-N
Liên hệ
Công tắc áp suất ADPS-05-2-N-C
ADPS-05-2-N-C
Liên hệ
Công tắc áp suất ADPS-06-1-N
ADPS-06-1-N
Liên hệ
Công tắc áp suất ADPS-06-2-N
ADPS-06-2-N
Liên hệ
Công tắc áp suất ADPS-06-2-N-C
ADPS-06-2-N-C
Liên hệ
Công tắc áp suất ADPS-07-1-N
ADPS-07-1-N
Liên hệ
Công tắc áp suất ADPS-07-2-N
ADPS-07-2-N
Liên hệ
Công tắc áp suất ADPS-07-2-N-C
ADPS-07-2-N-C
Liên hệ
Công tắc áp suất ADPS-08-1-N
ADPS-08-1-N
Liên hệ
Công tắc áp suất ADPS-08-2-N
ADPS-08-2-N
Liên hệ
Công tắc áp suất ADPS-08-2-N-C
ADPS-08-2-N-C
Liên hệ
Công tắc áp suất EDPS-03-1-N
EDPS-03-1-N
Liên hệ
Công tắc áp suất EDPS-03-2-N
EDPS-03-2-N
Liên hệ
Công tắc áp suất EDPS-04-1-N
EDPS-04-1-N
Liên hệ
Công tắc áp suất EDPS-04-2-N
EDPS-04-2-N
Liên hệ
Công tắc áp suất EDPS-05-1-N
EDPS-05-1-N
Liên hệ
Công tắc áp suất EDPS-05-2-N
EDPS-05-2-N
Liên hệ
Công tắc áp suất EDPS-06-1-N
EDPS-06-1-N
Liên hệ
Công tắc áp suất EDPS-06-2-N
EDPS-06-2-N
Liên hệ
Công tắc áp suất EDPS-07-1-N
EDPS-07-1-N
Liên hệ
Công tắc áp suất EDPS-07-2-N
EDPS-07-2-N
Liên hệ
Công tắc áp suất EDPS-08-1-N
EDPS-08-1-N
Liên hệ
Công tắc áp suất EDPS-08-2-N
EDPS-08-2-N
Liên hệ
Phụ kiện A-288
A-288
Liên hệ
Phụ kiện A-289
A-289
Liên hệ
Phụ kiện A-482
A-482
Liên hệ
Phụ kiện A-483
A-483
Liên hệ
Phụ kiện A-484
A-484
Liên hệ
Phụ kiện A-485
A-485
Liên hệ
Phụ kiện A-489
A-489
Liên hệ
Phụ kiện A-481
A-481
Liên hệ
Phụ kiện A-480
A-480
Tài liệu tham khảo
Tiêu đề Link download
Công tắc áp suất Series ADPS/EDPS Công tắc áp suất Series ADPS/EDPS
Series ADPS/EDPS Catalog Page Series ADPS/EDPS Catalog Page
