Thông số kỹ thuật
- Service: Non-combustible liquid, gas, or vapor.
- Wetted Materials: 17-4 PH Stainless Steel.
- Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
- Temperature Limits: -40 to 185°F (-40 to 85°C).
- Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
- Pressure Limits: 2X max range.
- Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
- Stability: 0.5% FS/year.
- Response Time: 5 ms.
- Power Requirements: 9-30 VDC.
- Output: 4-20 mA**, 2-wire.
- Zero and Span Adjustment: Fixed.
- Loop Resistance: 0 to 800 Ω.
- Shock: 200 g.
- Vibration: 20 g.

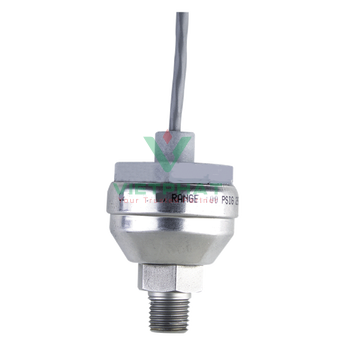

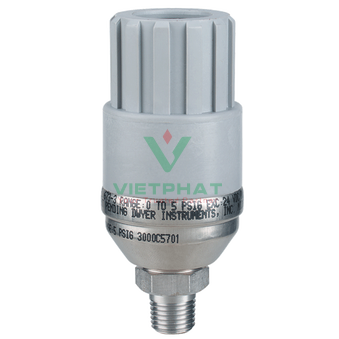

- Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
- Enclosure: Stainless Steel and Valox.
- Weight: 2.3 oz (65 g).
- Agency Approvals: CE.
*RSS of non-linearity, hysteresis, and non-repeatability.
**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
