Combining High Accuracy, Compactness, Dependability, and Low Cost

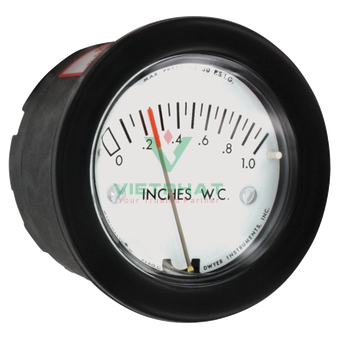

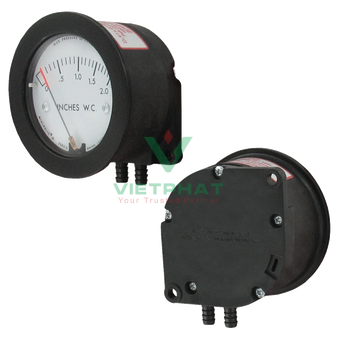

Minihelic® II Differential Pressure Gage combines clean design, small size, and low cost. Latest in design. Easy to read and can safely operate at total pressures up to 30 psig.
Features
-
Removable lens and rear-housing provides easy, cost-effective servicing
-
Accuracy and value provides an excellent solution for OEM and user applications
-
Durable housing materials make it well-suited for rough environments and total high pressure
Product Applications
-
Room Positive Pressure Sensing
-
Local Indication on Filter Status
-
Face Velocity on Fume Hood
-
Duct Pressures
-
Cabinet Air-Purging
-
Air Samplers
-
Electronic Air Cooling Systems
-
Laminar Flow Hoods
Specifications
-
Service: Air and compatible gases.
-
Wetted Materials: Consult factory.
-
Housing: Glass filled nylon; polycarbonate lens.
-
Accuracy: ±5% of FS at 70°F (21.1°C).
-
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
-
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
-
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
-

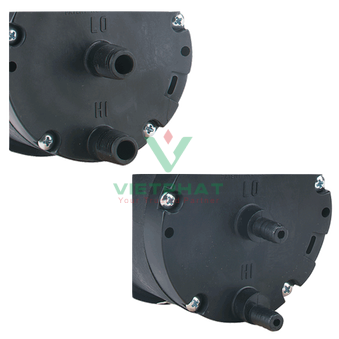

Process Connections: Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional).
-
Weight: 6 oz (170.1g).
-
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
