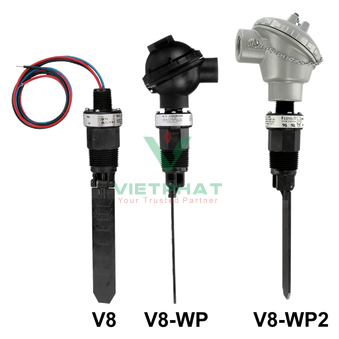

Công tắc dòng chảy V8_WP

  • Sản phẩm
  • Thương hiệu:
  • Giá:
    Liên hệ
  • Sản xuất tại:
    Mỹ
  • Mã HH:
    V8-WP
  • Đơn vị tính:
    Cái
  • Chọn số lượng:
Tổng quan về sản phẩm
Thông số kỹ thuật
  • Service: Compatible gases or liquids.
  • Wetted Materials: Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8.
  • Temperature Limit: 212°F (100°C).
  • Pressure Limit: 150 psig (10 bar).
  • Enclosure Rating: General purpose; WP/WP2 option is weatherproof.
  • Switch Type: SPDT snap switch; MV option: SPDT gold contact snap switch.
  • Electrical Rating: 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC.
  • Electrical Connections: 18 AWG 18" (460 mm) long.
  • Conduit Connection: 1/2" male NPT, 1/2" female NPT on WP and WP2.
  • Process Connection: 1" male NPT.
  • Mounting Orientation: Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow.
  • Set Point Adjustment: Vane is trimmable.
  • Weight: 4.5 oz (0.13 kg).
  • Agency Approvals: CE, cURus.
Ordering:
Model
Description
V8
Vane operated flow switch.
V8-WP
Vane operated flow switch with weatherproof enclosure (phenylpolioxide).
Thông số kỹ thuật
Tài liệu tham khảo
Tiêu đề Link download
Công tắc dòng chảy Series V8 Công tắc dòng chảy Series V8
