Bộ đo áp suất 4220

  • Sản phẩm
  • Thương hiệu:
  • Giá:
    Liên hệ
  • Sản xuất tại:
    Mỹ
  • Mã HH:
    4220
  • Đơn vị tính:
    Cái
  • Chọn số lượng:
Tổng quan về sản phẩm
Measures Pressure, Vacuum or Differential, Suitable for Internal Pressures to 500 psig

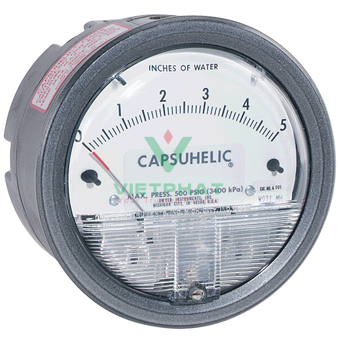

Capsuhelic® Differential Pressure Gage is designed to give fast, accurate indication of differential pressures. Measures flowing fluids, pressure drop across filters, and liquid levels in many applications.

Features
  • Gage capsule permits high-pressure usage with small differentials
  • Zero and range adjustments outside of gage means no disassembly in normal service
  • Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c.
  • Diaphragm-actuated versus liquid filled gage supports outdoor use
Product Applications
  • Fluid flow
  • Liquid storage tanks
  • Filter pressure drops
  • Vacuum or differential pressure
Specifications
  • Service: Aluminum Case: Air and compatible gases and oil based liquids. Brass Case: Air and compatible gases and water based liquids.
  • Wetted Materials: Consult factory.
  • Housing: Die cast aluminum with impregnated hard coating, standard. Optional forged brass housing is required for water or water based fluids.Special material diaphragms available, contact factory.
  • Accuracy: ±3% of FS at 70°F (21.1°C). (±4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500).
  • Pressure Limits: -20" Hg to 500 psig. (-0.677 bar to 34.4 bar).
  • Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).
  • Size: 4" (101.6 mm) diameter dial face.
  • Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
  • Process Connections: 1/4" female NPT high and low pressure taps, duplicated - one pair top for air and gas, and one pair bottom for liquids.
  • Weight: 3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case.
  • Standard Accessories: Two 1/4" NPT plugs for duplicate pressure taps, four flush mounting adapters with screws and four surface mounting screws.
Thông số kỹ thuật
Tài liệu tham khảo
Tiêu đề Link download
Series 4000 Catalog Page Series 4000 Catalog Page
