Bộ đo áp suất 2002-SP

  • Sản phẩm
  • Thương hiệu:
  • Giá:
    Liên hệ
  • Sản xuất tại:
    Mỹ
  • Mã HH:
    2002-SP
  • Đơn vị tính:
    Cái
  • Chọn số lượng:
Tổng quan về sản phẩm
Indicate Positive, Negative or Differential, Accurate within 2%

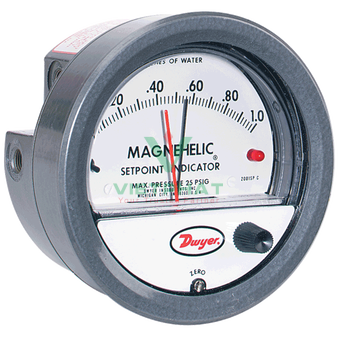

Magnehelic® Differential Pressure Gages has a bright red LED on right of scale that shows when setpoint is reached. Field adjustable from gage face.

Specifications
  • Service: Air and non-combustible, compatible gases. (Natural gas option available.)
  • Wetted Materials: Consult factory.
  • Housing: Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
  • Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00,-60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
  • Pressure Limits: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
  • Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
  • Temperature Limits: 20 to 140°F. (-6.67 to 60°C).
  • Size: 4" (101.6 mm) diameter dial face.
  • Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
  • Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
  • Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapter and three flush mounting adapters with screws. (Mounting and snap ring retainer substituted for 3 adapters in MP & HP gage accessories.)
Thông số kỹ thuật
Tài liệu tham khảo
Tiêu đề Link download
Series 2000-SP Catalog Page Series 2000-SP Catalog Page
